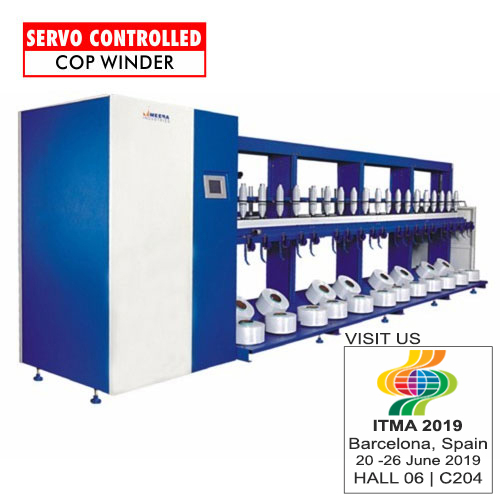

- Highly sophisticated servo controlled cop winder provides premium quality winding with its servomotor driven PLC system. The winding machine delivers uniform yarn speed without change in tension to ensure high quality winding.
- 我要詢盤
Highly sophisticated servo controlled cop winder provides premium quality winding with its servomotor driven PLC system. The winding machine delivers uniform yarn speed without change in tension to ensure high quality winding.
APPLICATION :-
>Rewinder for Fileament Yarm from bigger cheese to small cop suitable for Twisting Machine.
>Cheese to Pim winding
Bobbin winding
Bottle winding
FEATURES :-
>Servomotor driven with PLC system featuring the uniform yarn speed without the change in tension, so >that it is possible to realize the high quality of Winding.
>Input & Output parameter can be set by touch screen control panel, so that it makes more convenient >operation even for unskilled operator.
>The flexibility of its function allows the winding of all Pirn, Bottle and Spool Bobbins.
OPTIONS :-
>Individual length counter
>Cop length up to 420 mm.

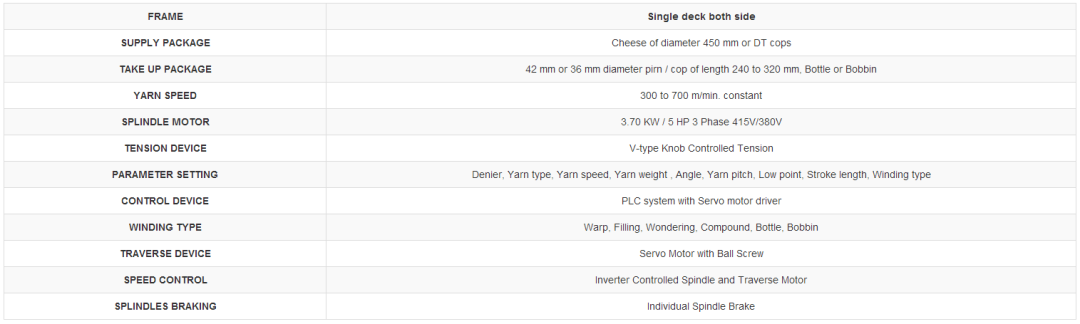

TECHNICAL SPECIFICATIONS :-

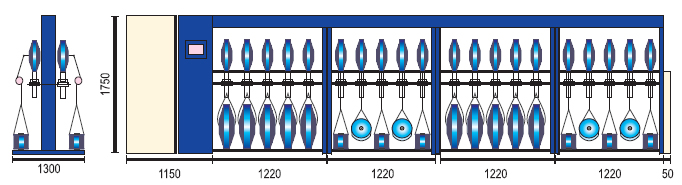

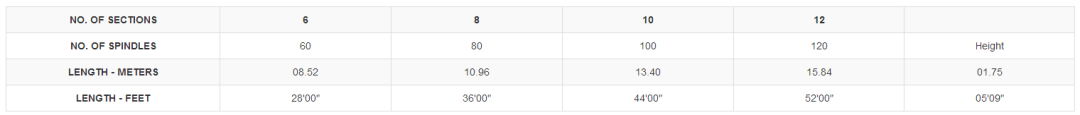

DIMENTIONS :-

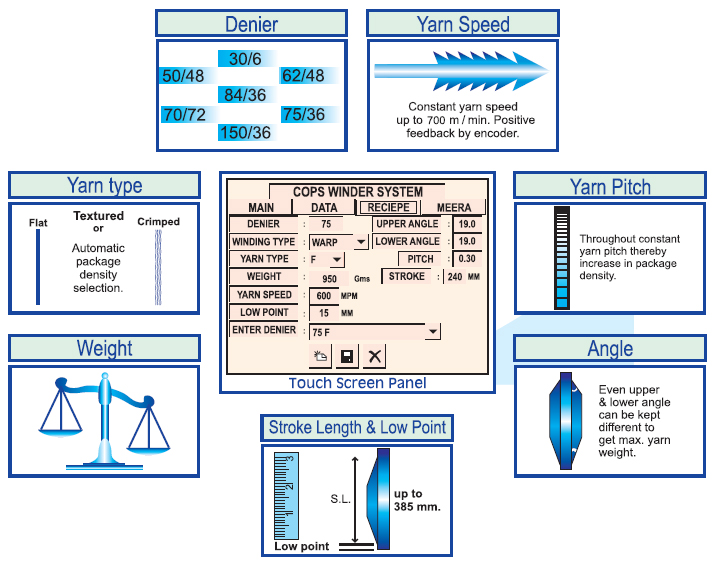

SETABLE PARAMETERS OF COPS WHICH GIVES PACKAGE FORMATION

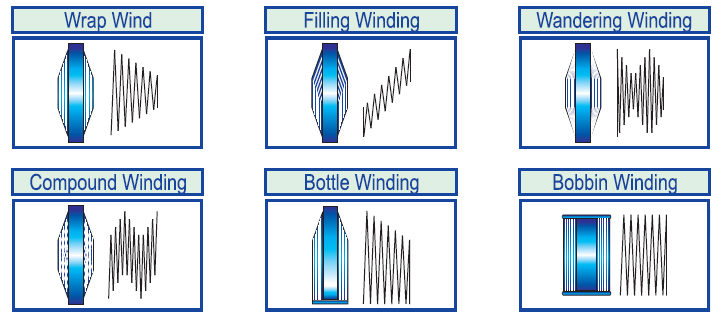

WINDING TYPE
